'99-'06 Chevy/GMC 2wd weld it yourself long travel kit.
Kit Includes:
- 3/16" mild steel upper arms

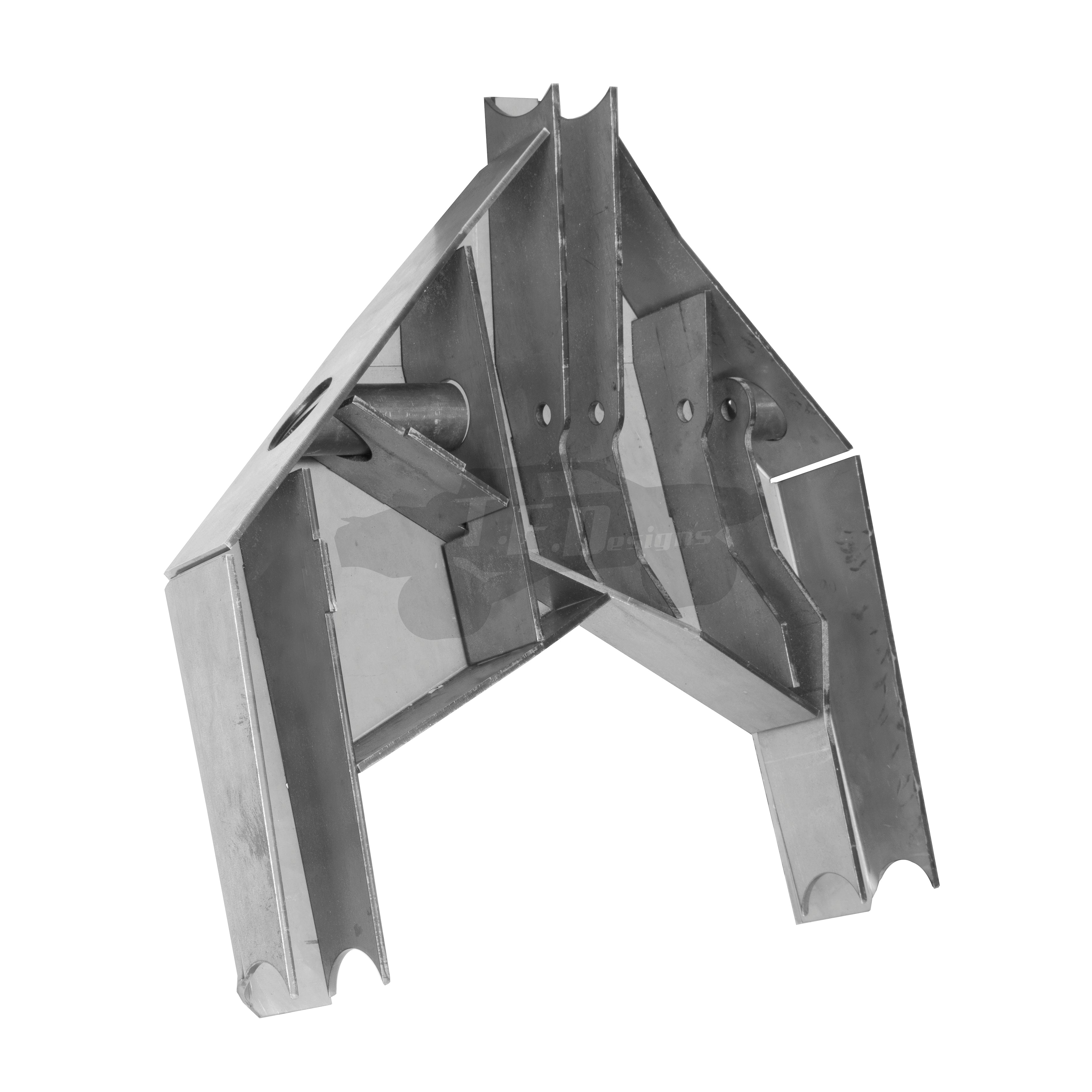

- 3/16" mild steel lower arms
- 3/16" mild steel spindles
- Factory upper control arm mount adjustment eliminators
-
DOM tube for upper arm, lower arm, and spindle
-
Machined mild steel snout block
- Control arm bolt gusset kit
Specs:
- Limited at 17" travel (King Performance Series 2.5 x 10" will get you just over 18")
- Moves tires 1" forward from stock
- 2.5" x 10" coilover recommended
- 2.5"-3.5" x 10" bypass recommended
- Factory upper and lower control arm mounts
- Track width: +5" per side
- Utilizes factory hub and calipers (We recommend upgrading to hydroboost)
Add-On Information - Please note, the below items are not included in the cost of a basic kit
Upper Control Arm Hardware Kit Includes:
- 3/4" RH FK Rod End heim joints/jam nuts (JMX Series) x4
- 3/4"-1/2" high misalignment spacers x4 (pairs)
- 3/4" Square bung/insert x4
Lower Control Arm/Spindle Hardware Kit Includes:
- 1" FK Rod Ends uniball and cup x2ea
- 1"-5/8" high misalignment spacers x2 (pairs)
- 1-1/2" FK Rod End uniball x2
- 1-1/2" uniball cup x2
- 1-1/2"-3/4" high misalignment spacers x2 (pairs)
Steering Kit Includes:
- 1-1/4" solid mild steel tie rods x2
- 7/8" FK Rod End heim joints/jam nuts x 2ea
- 7/8"-1/2" high misalignment spacers x 2 (pairs)
- 3/4" x 5/8" FK Rod Ends high misalignment heims/jam nuts x 2ea
- Stainless steering clevis and bolt (M22 x 1.5") x2
Lower Control Arm Bushing Kit Includes:
- Delrin bushings x8
- DOM outer sleeves x4
- DOM inner sleeves x4
Front Shock Tower Kit Includes:
- All plates necessary for WIY shock towers
Please note, photos of welded products are for demonstration only, you will not receive welded parts.
We are currently experiencing website issues with the "add-on" feature. Please refer to "You might also like" section for the add on kits.
