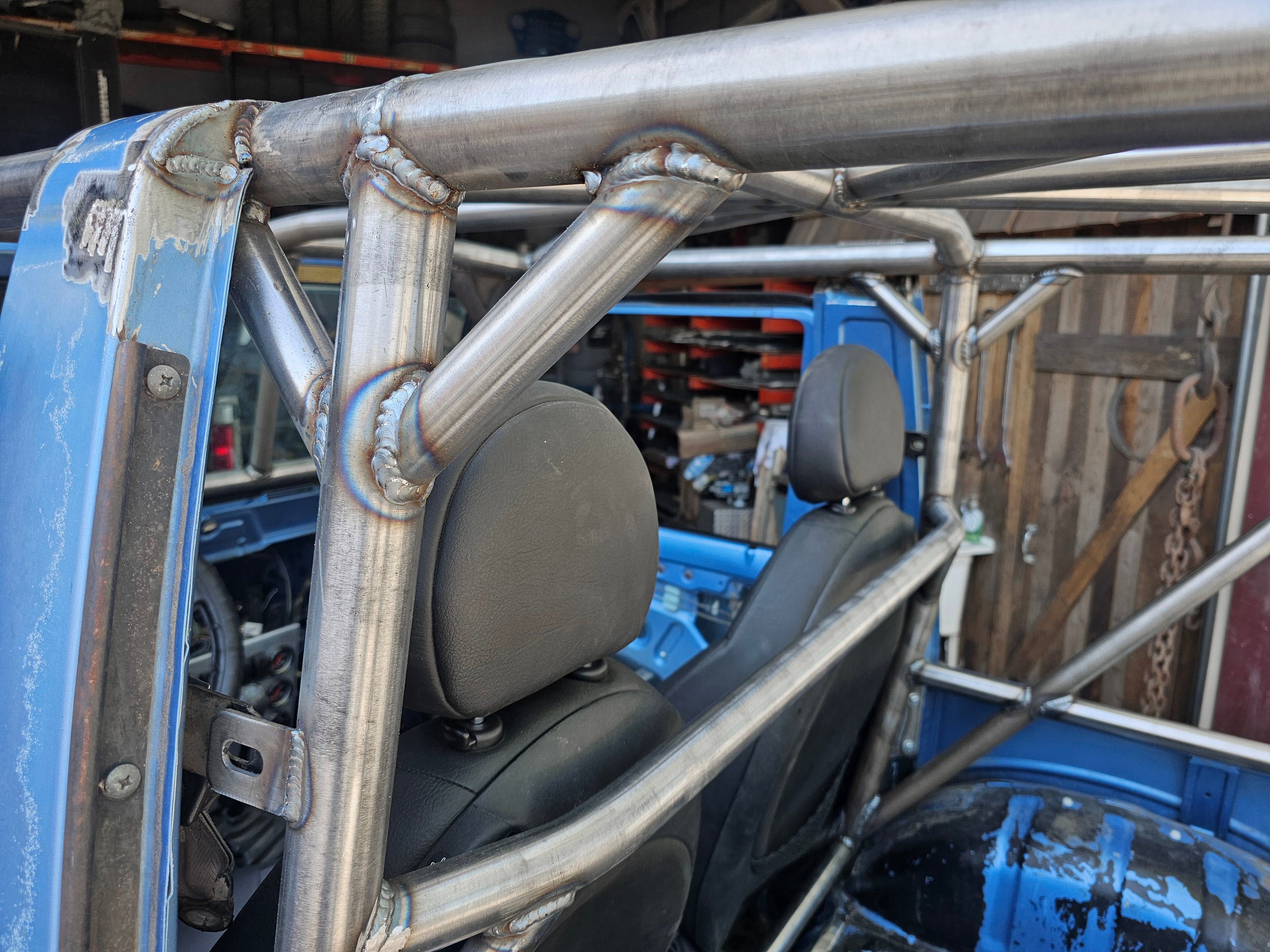

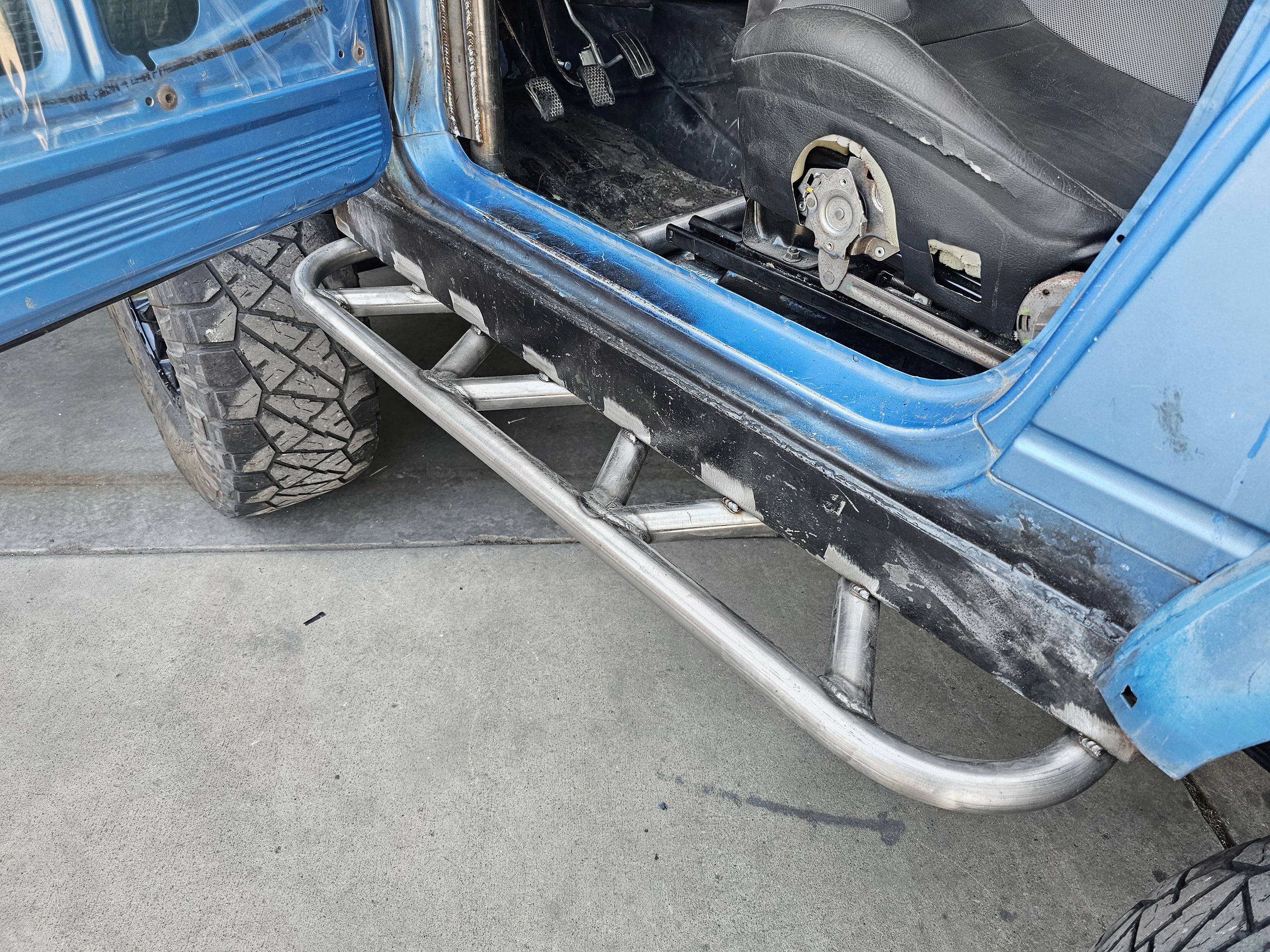

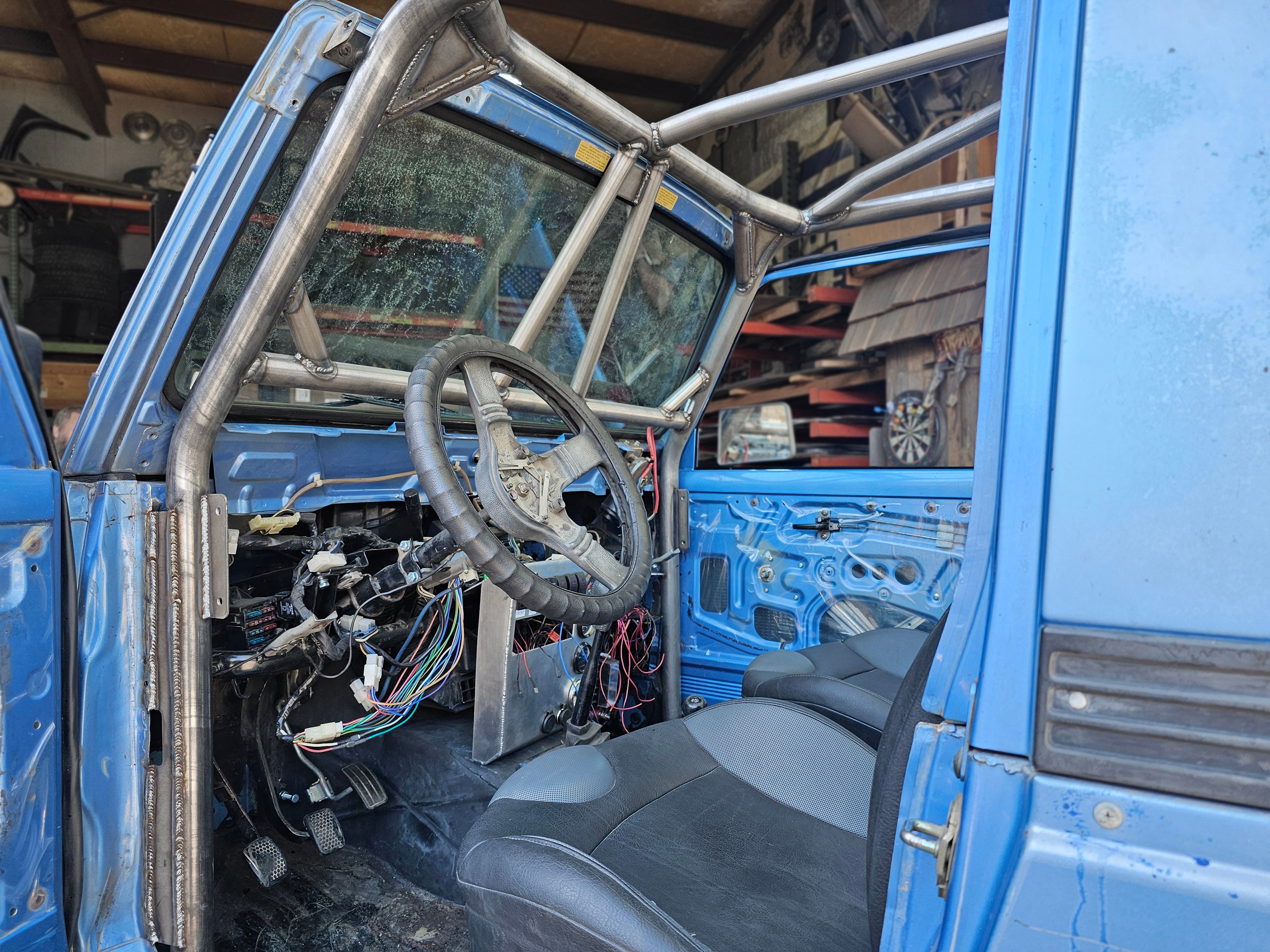

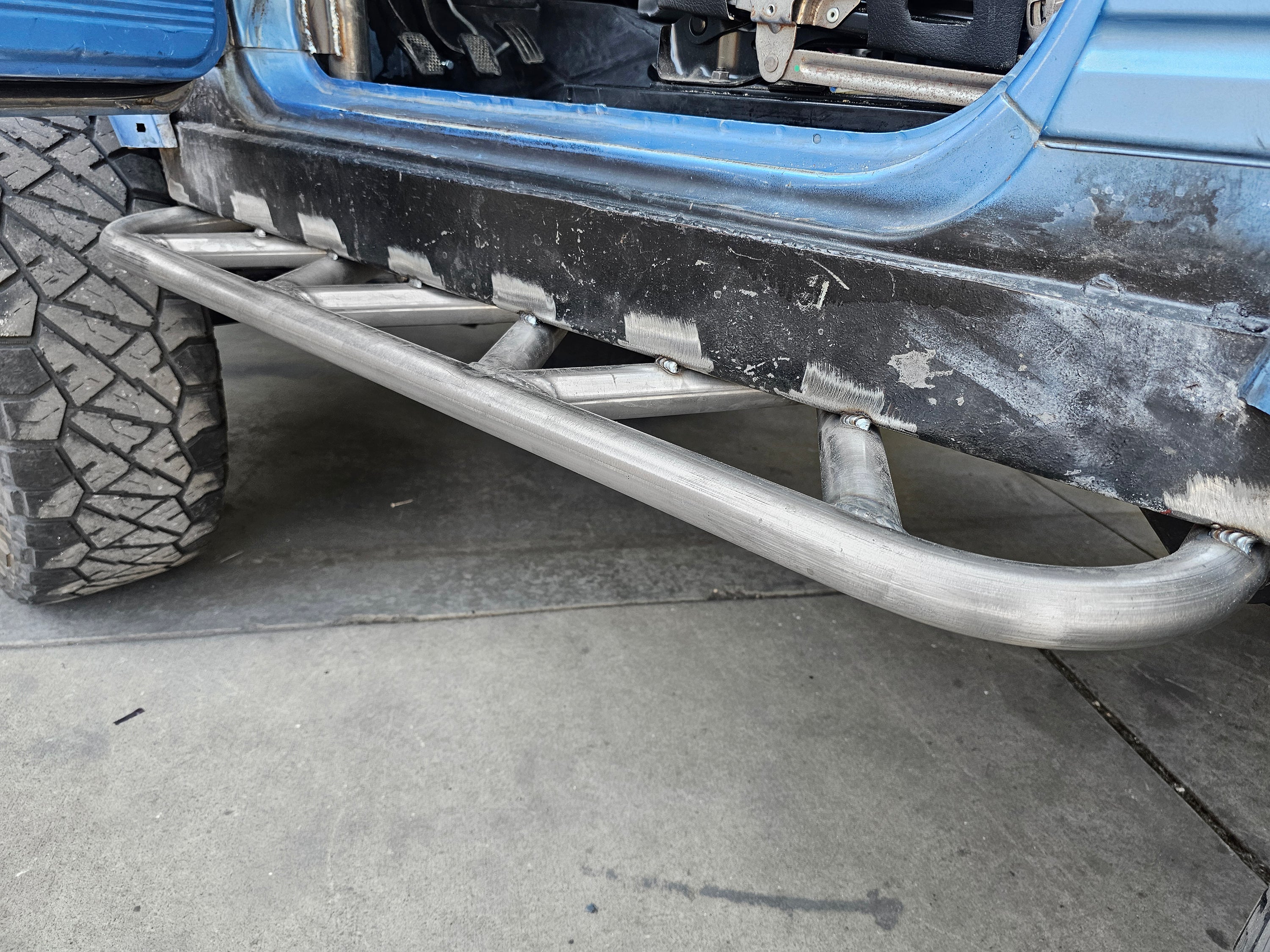

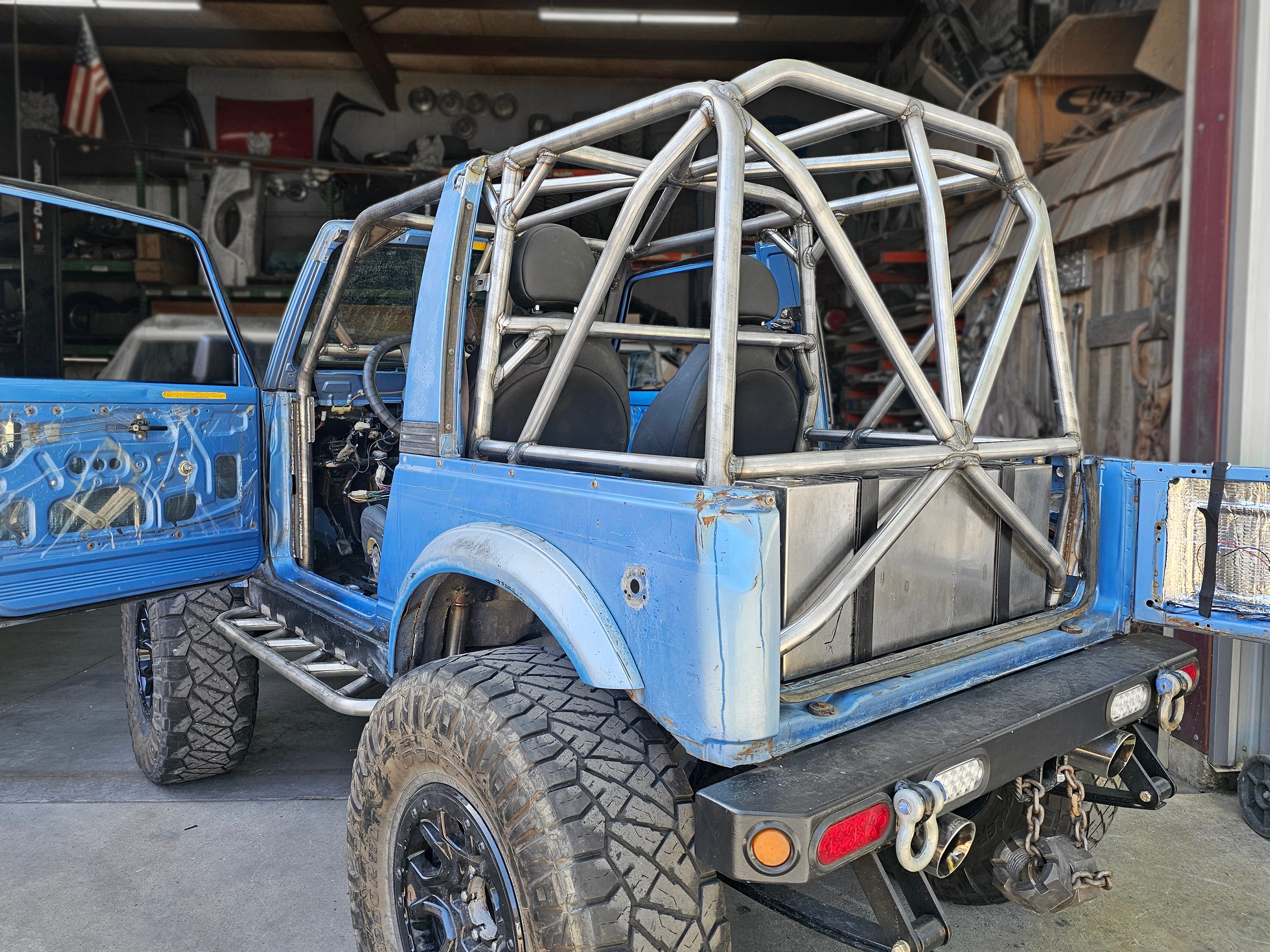

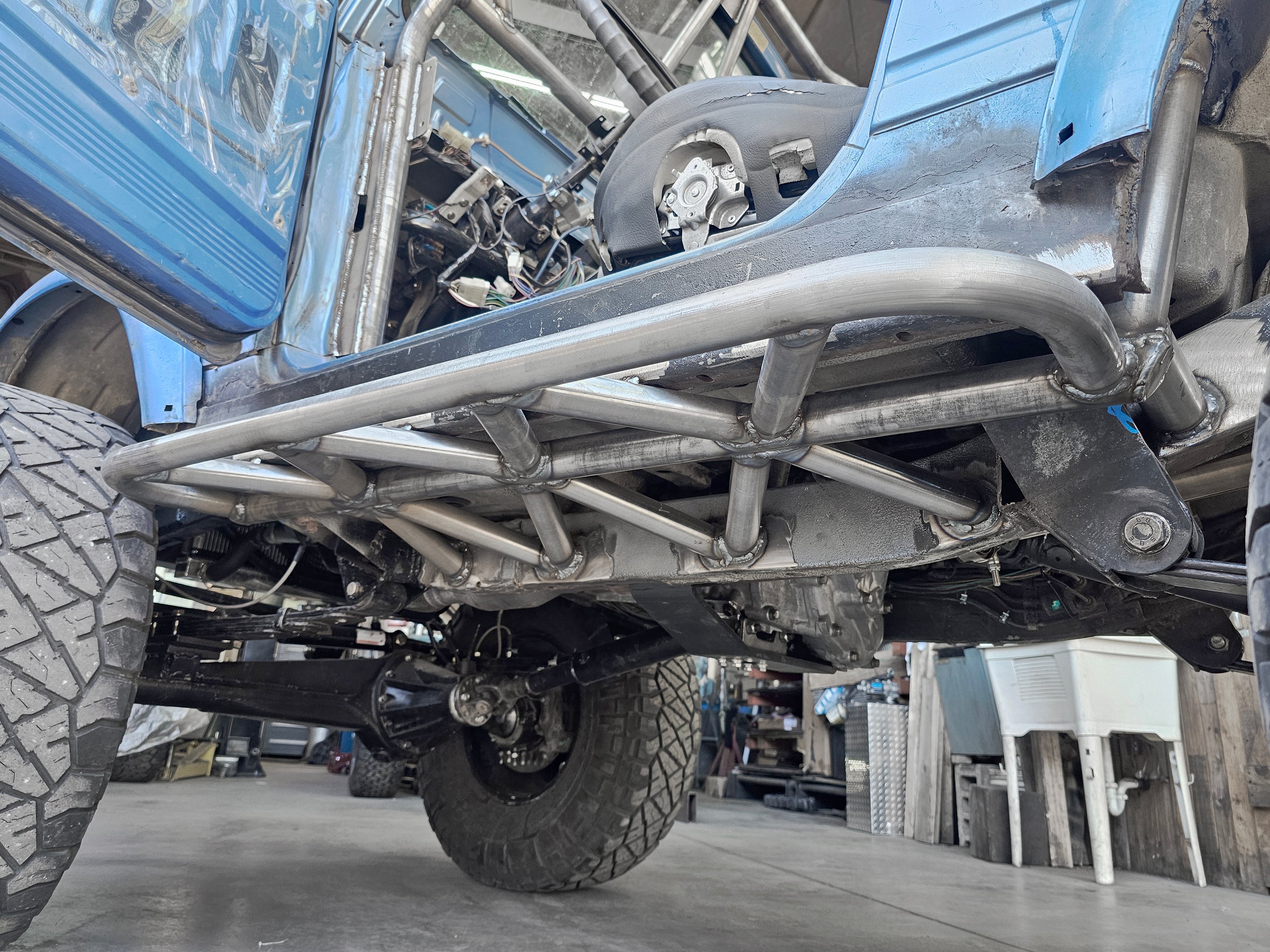

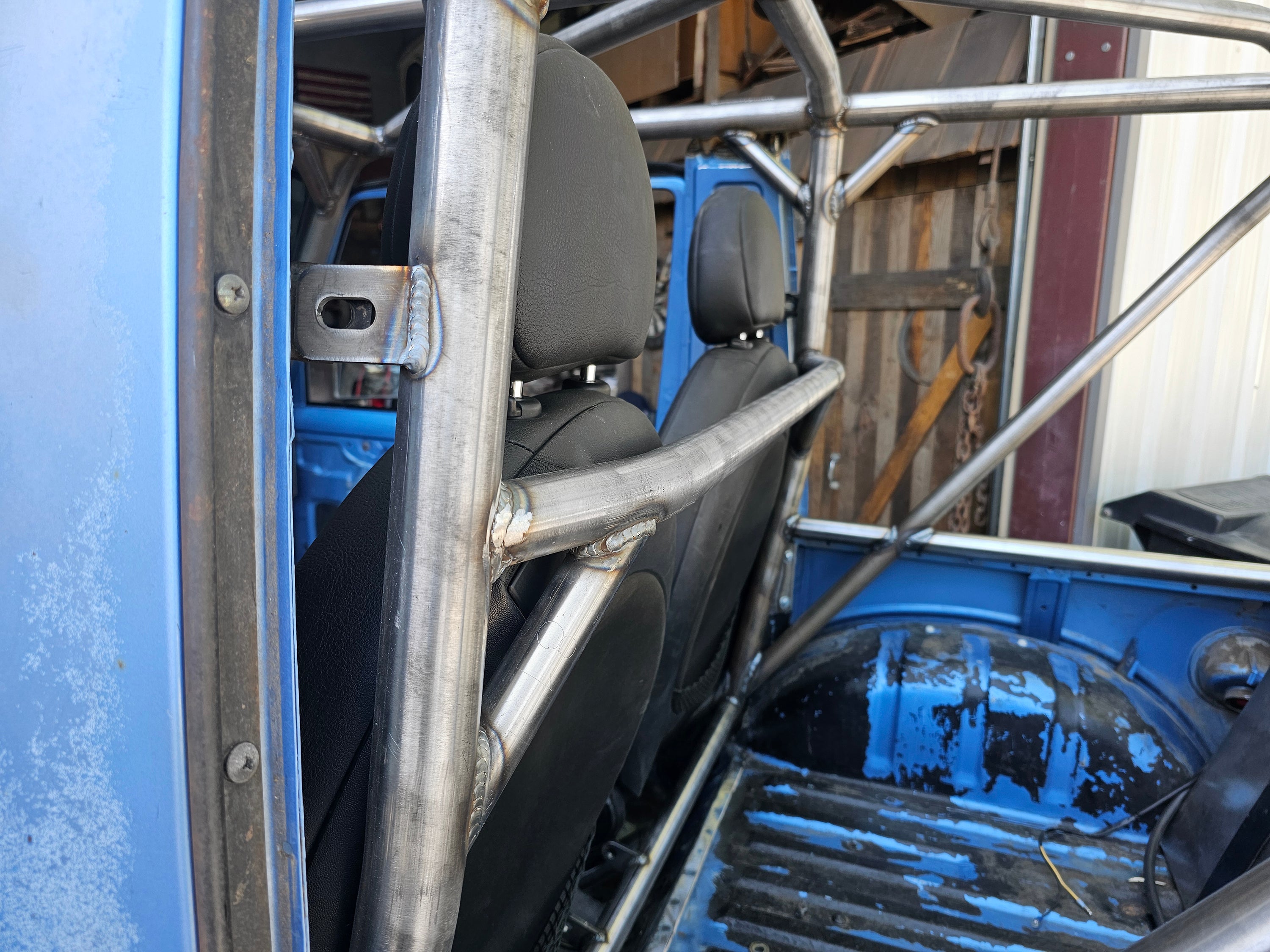

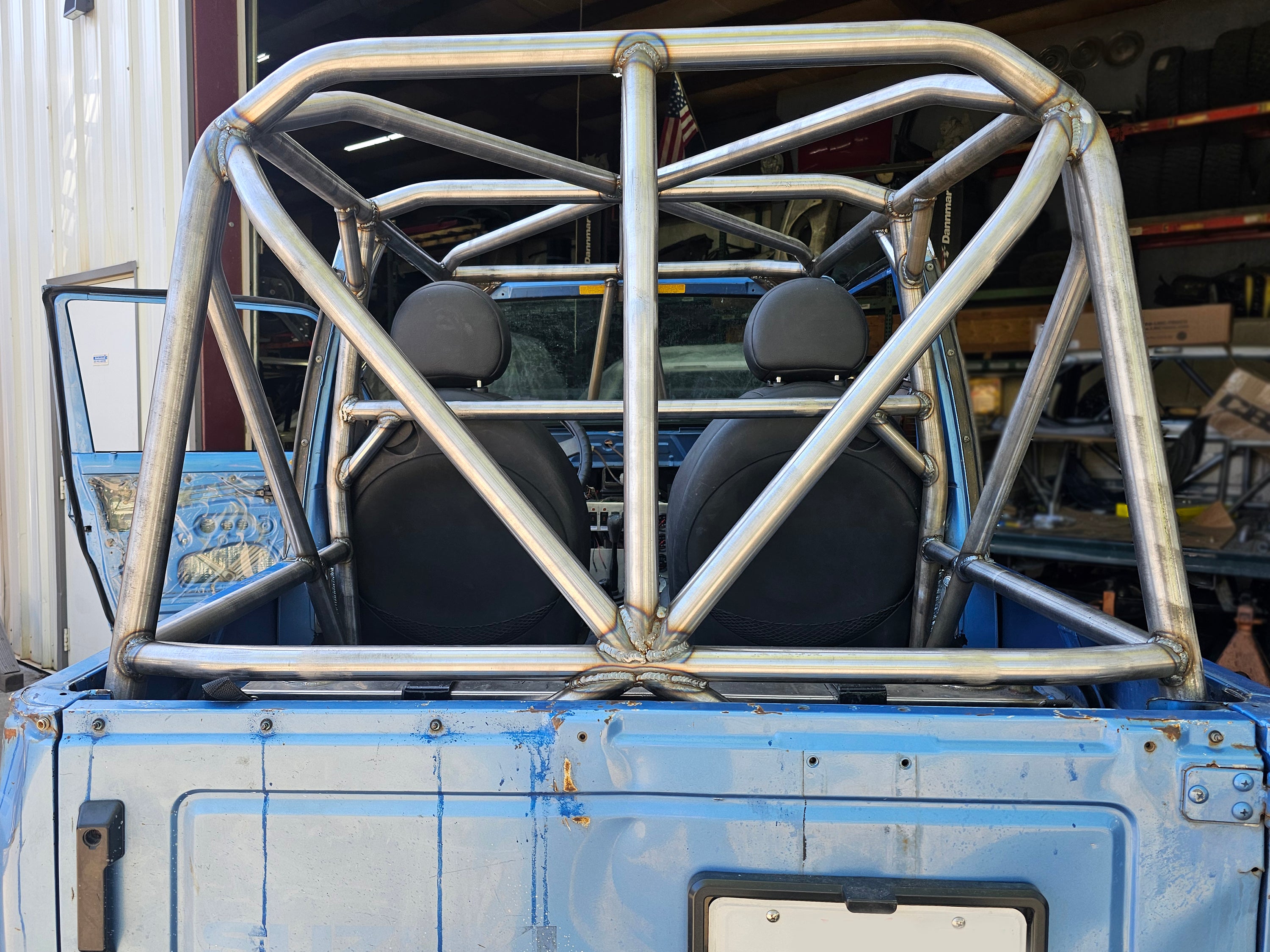

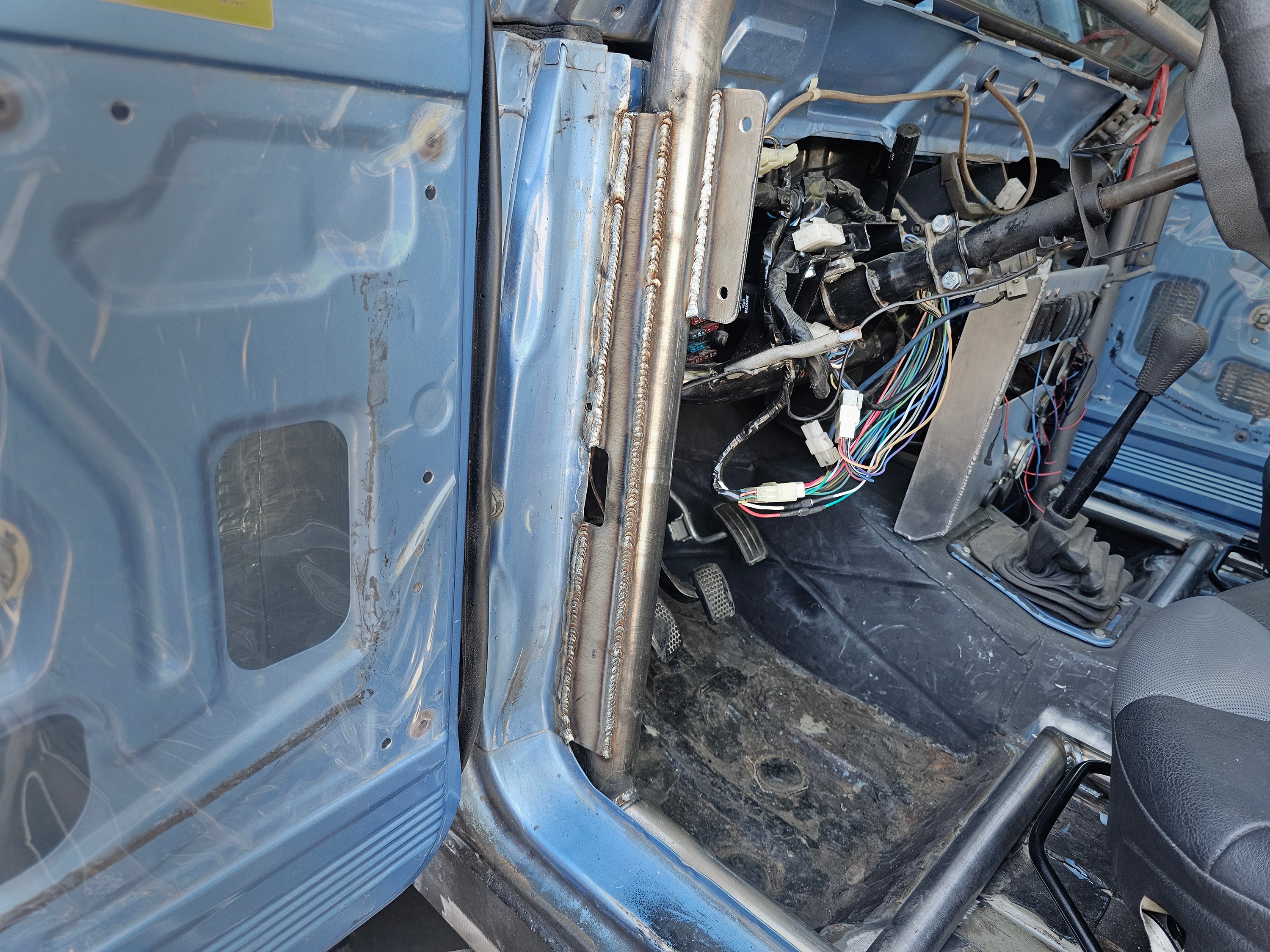

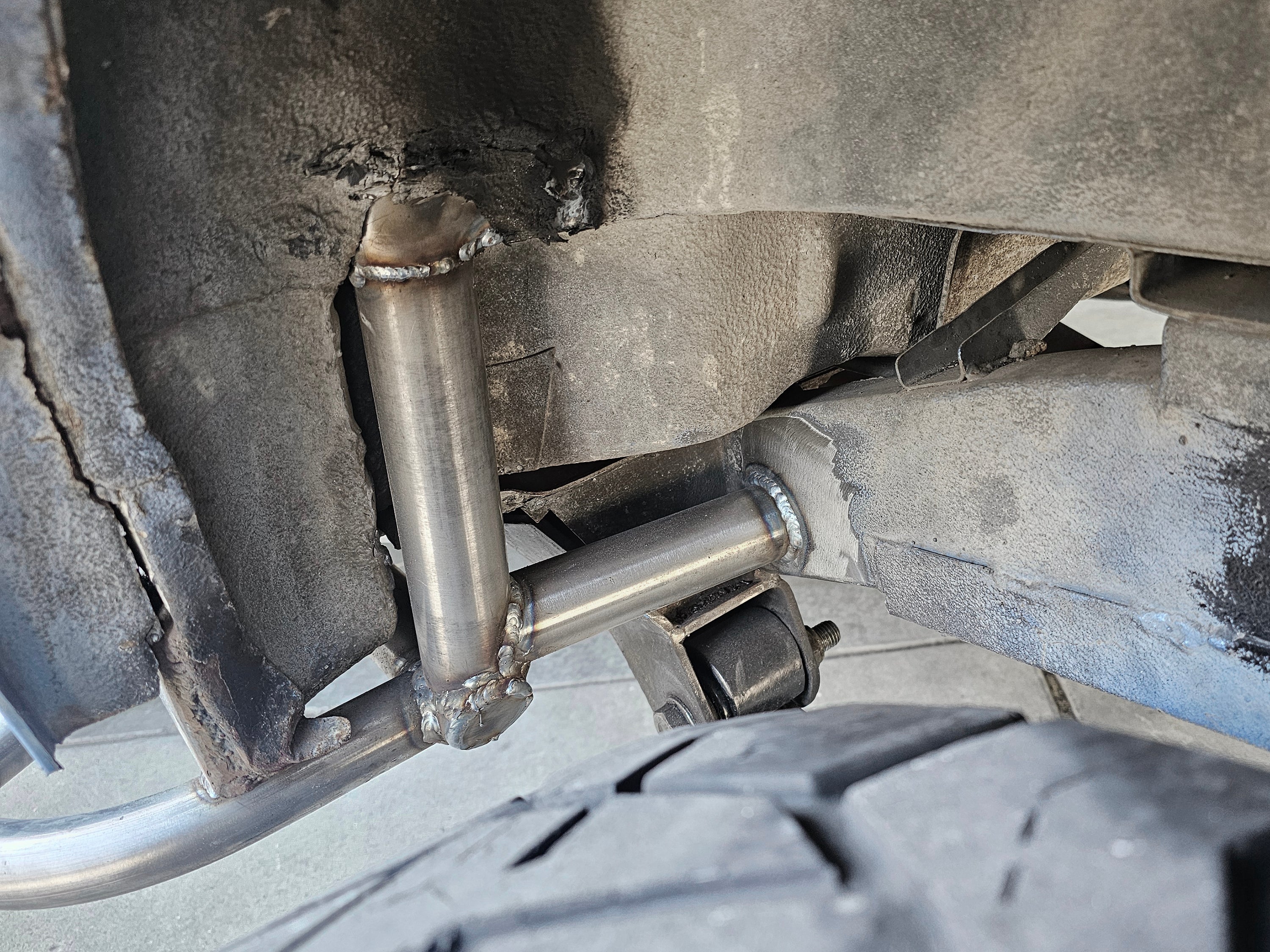

This weld it yourself cage kit was designed to fit a '86-'95 Suzuki Samurai. You can choose to run a factory soft, hard, or tin top (this option does not fit tightly or utilize the full space given with the tin top). This kit also comes with the add on option of rock sliders made of 1-1/2" x .120 wall DOM, as shown in photos. Find more details below.

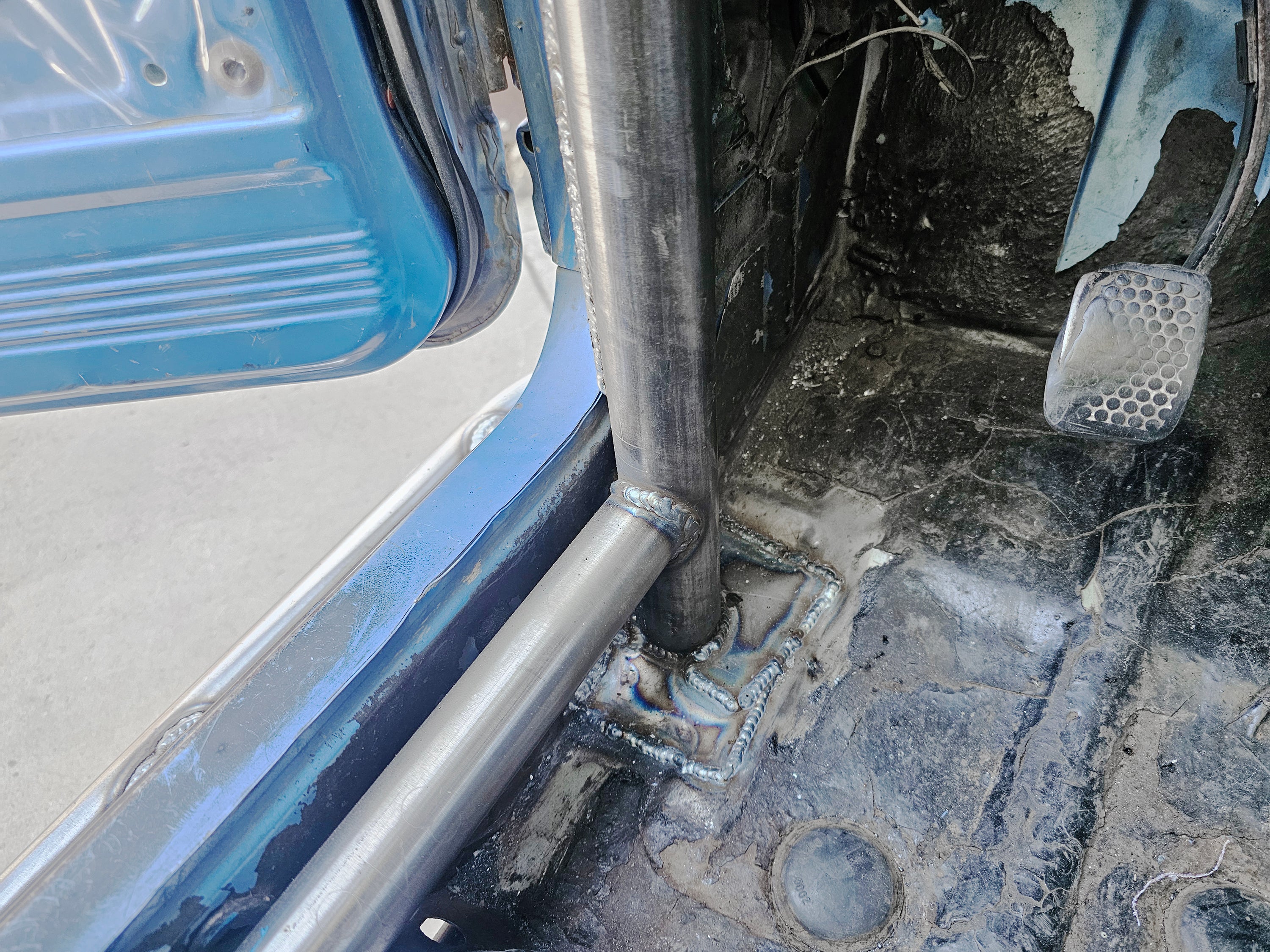

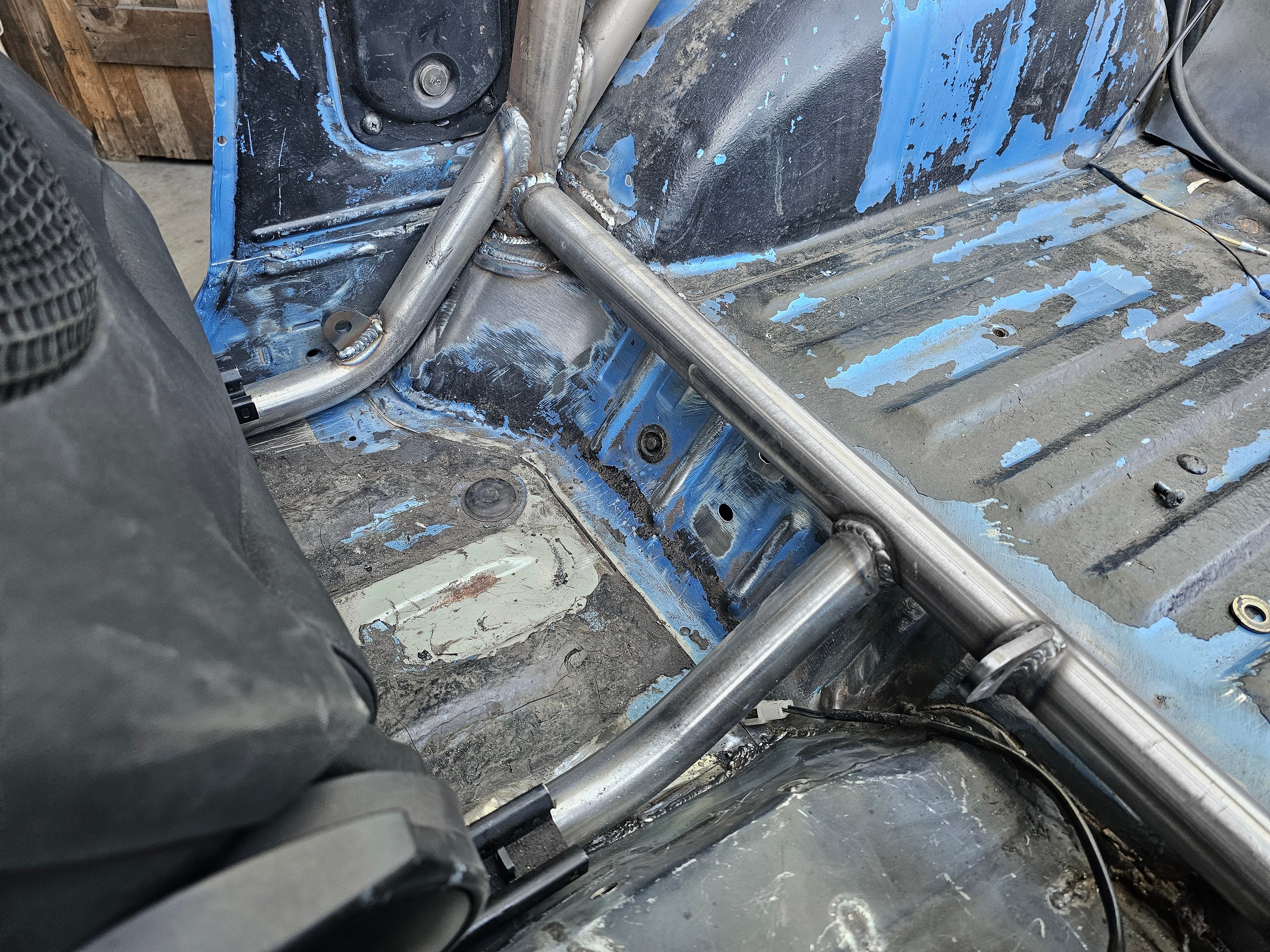

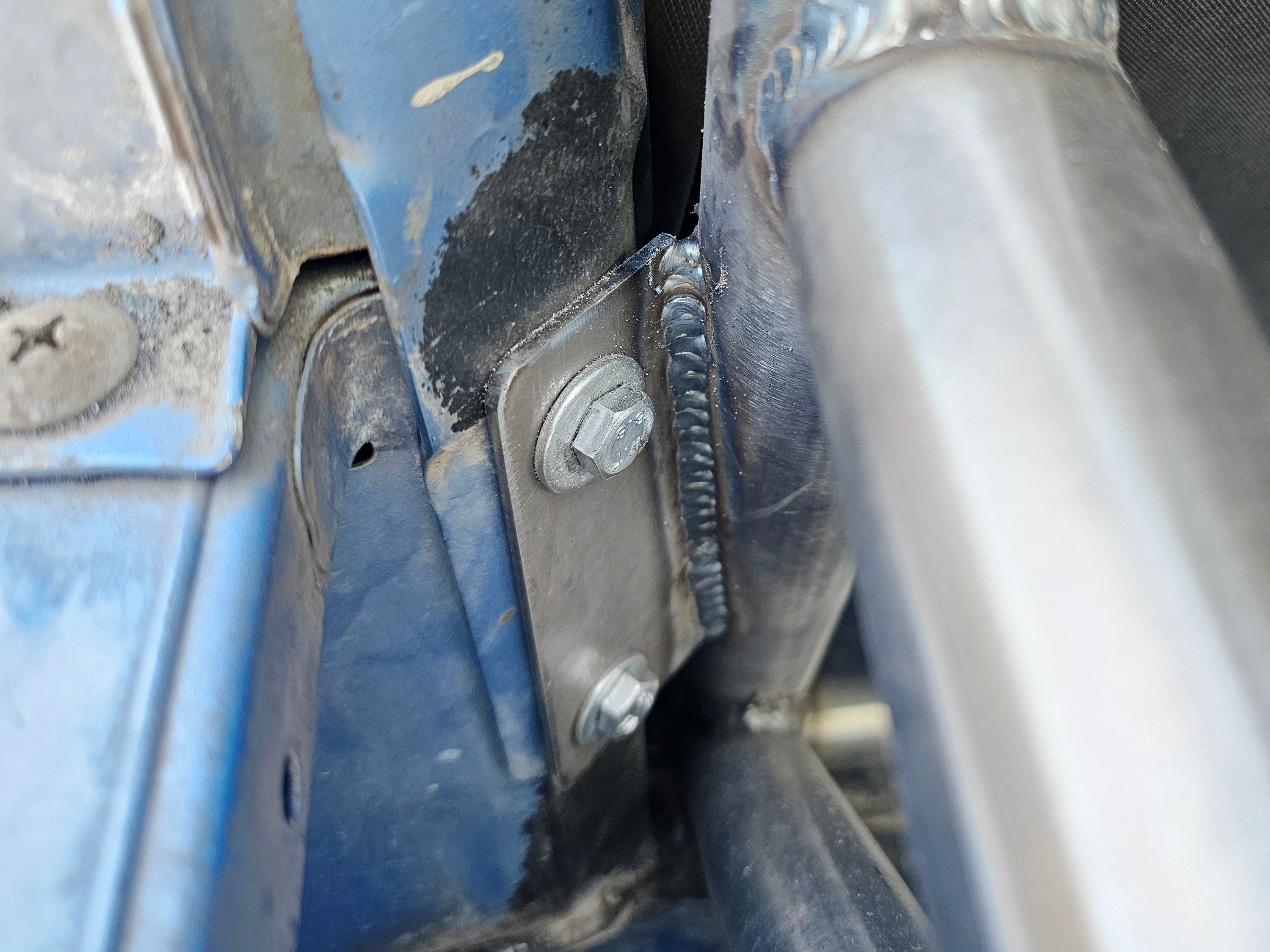

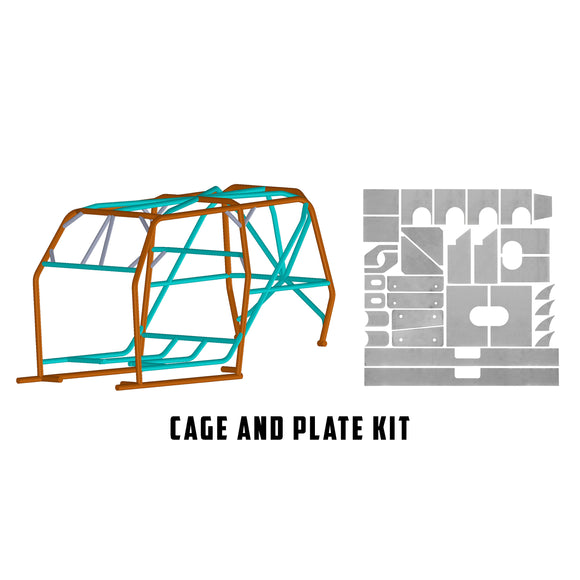

The optional floor plate kit includes 31 laser cut sheet metal plates to fill the holes made in the floor from the cage install (A, B and C pillars) as well as cage to body tie in plates. We recommend adding this kit to protect from natural elements building up in hard to reach areas of your vehicle as well as saving you time from having to make the pieces yourself. 18G Steel and 1/8" steel.
- CNC cut and bent
- 1.75" x .120" wall DOM main tubes
- 1.5" and 1.25" x .120wall DOM tie ins
- Full 360 Degree weldable
- Stock dash and door panels reusable
- Factory heat and AC reusable
- Heater core stays in factory location
- Stock body mounts retained

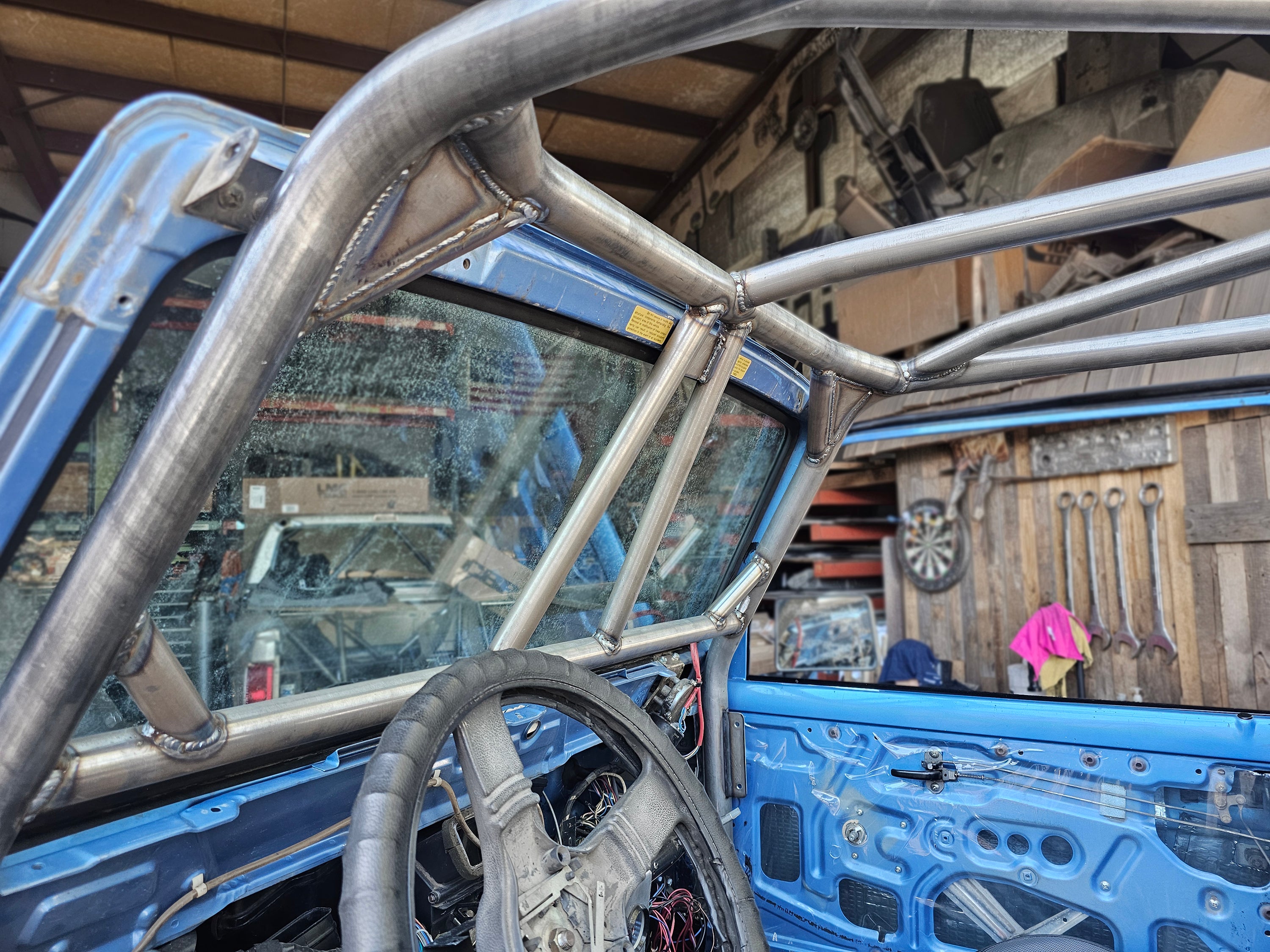

- Stock windshield tie-in reusable

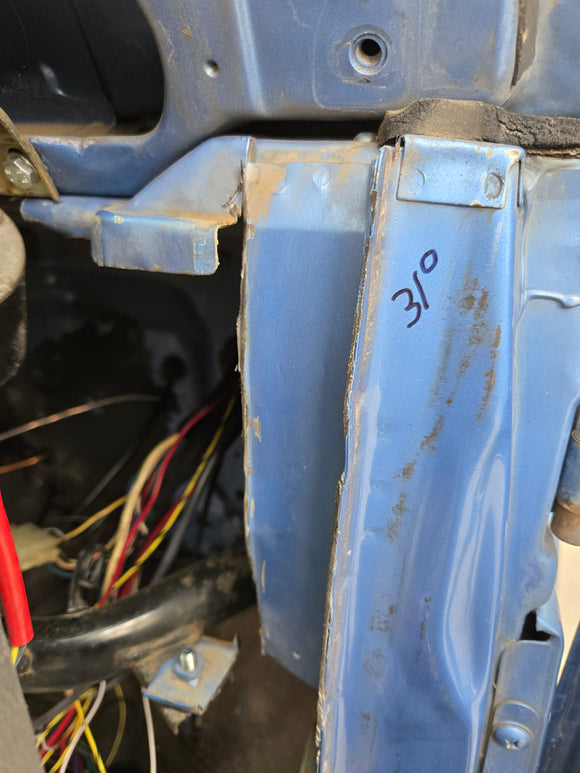

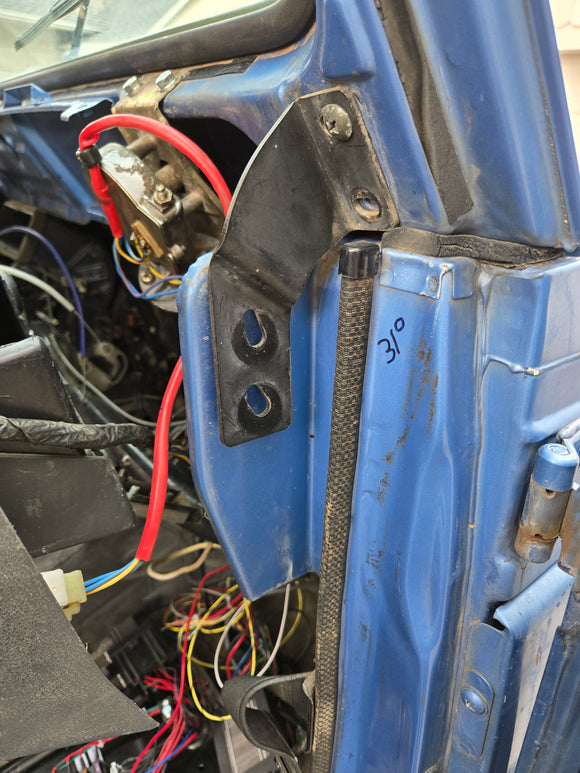

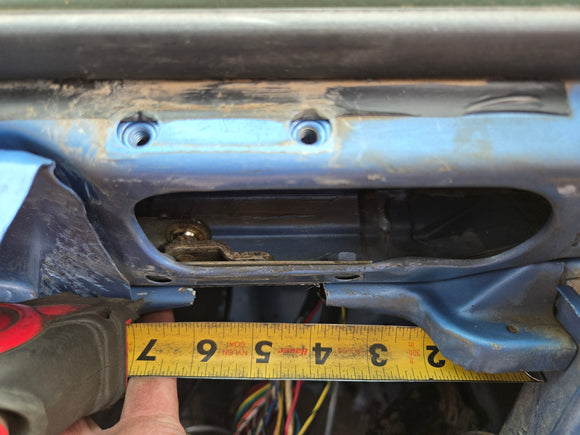

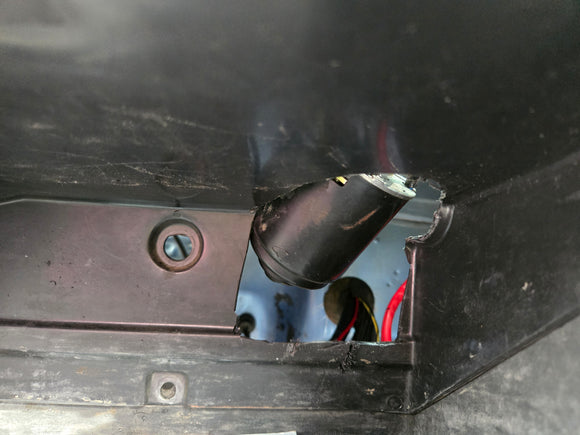

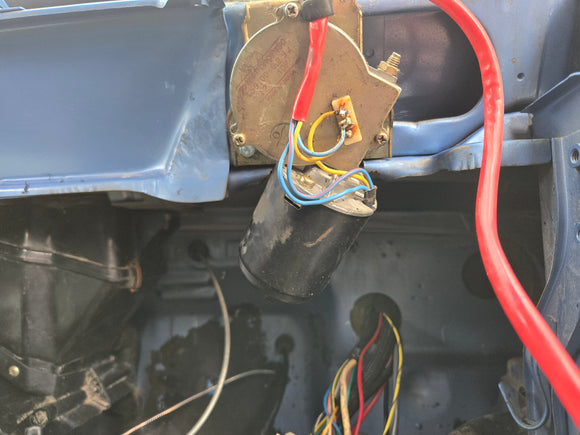

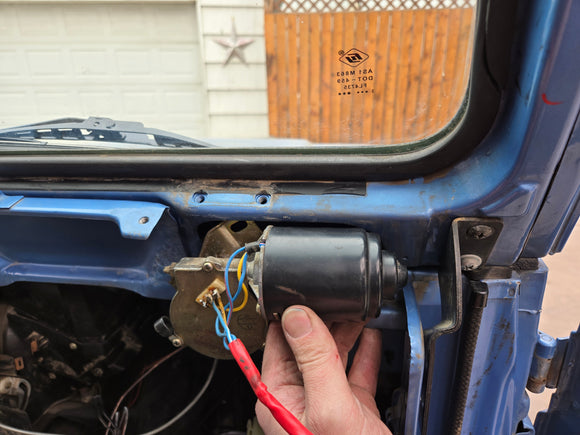

- Windshield wiper bracket modification necessary
- Works with factory soft top or hard top
- Tin top will fit but not tightly

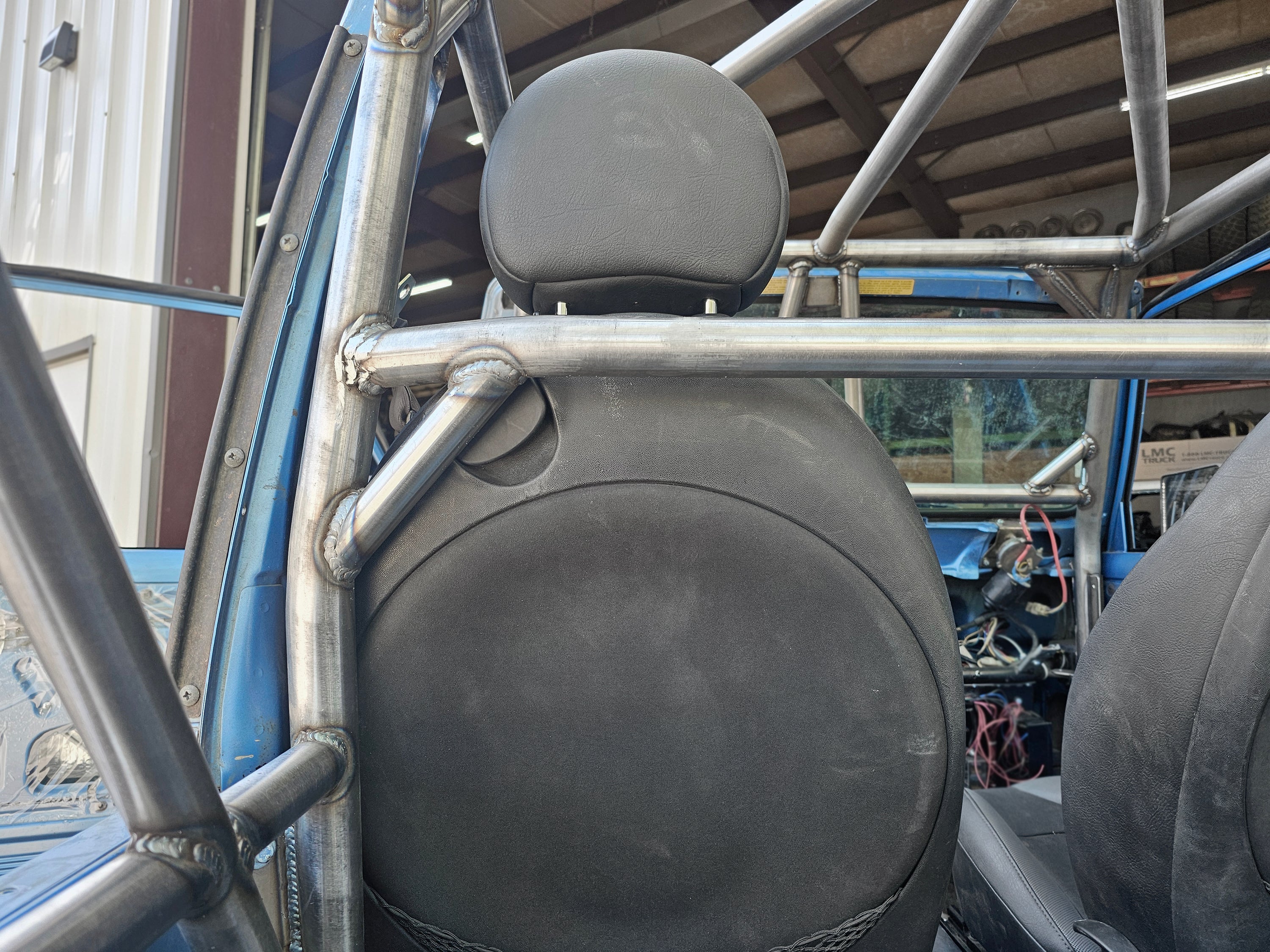

- OEM rear bench seat reusable
- Each tube labeled and marked for adjacent tube placement
- Easily modified for your own touches and needs
- PDF of tube layout provided

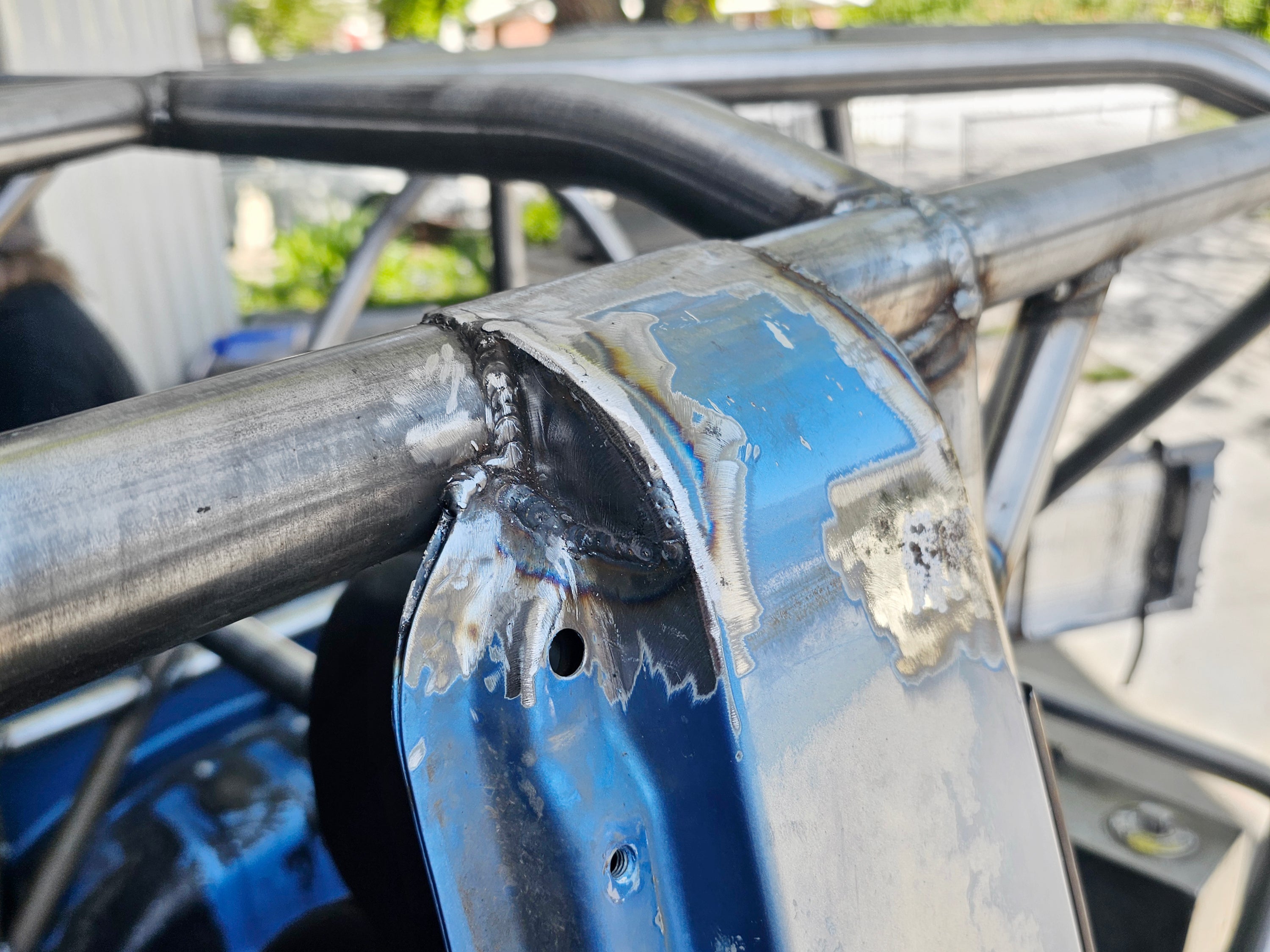

- Optional, remove targa bar (upper b-pillar sheet metal) and the tubing will land on the upper portion of the frame for more head clearance. You may also keep the targa bar intact and tube will land on the lower side of the frame
- Front windshield corner plate gussets not included
- SHOULD BE INSTALLED BY A COMPETENT FABRICATOR. IF YOU DO NOT HAVE THE CONFIDENCE TO INSTALL THIS CAGE PROPERLY, PLEASE CONTACT YOUR LOCAL FAB SHOP
Disclaimer: All TE Designs products are intended for off-road use only. Proper installation is critical to safety and performance. Any welding or fabrication should be performed by qualified professionals. The customer is responsible for correct installation, inspection, maintenance, and use. Vehicle modifications may affect handling and safety. TE Designs is not liable for damages or injuries resulting from installation, use, misuse, or modification.
