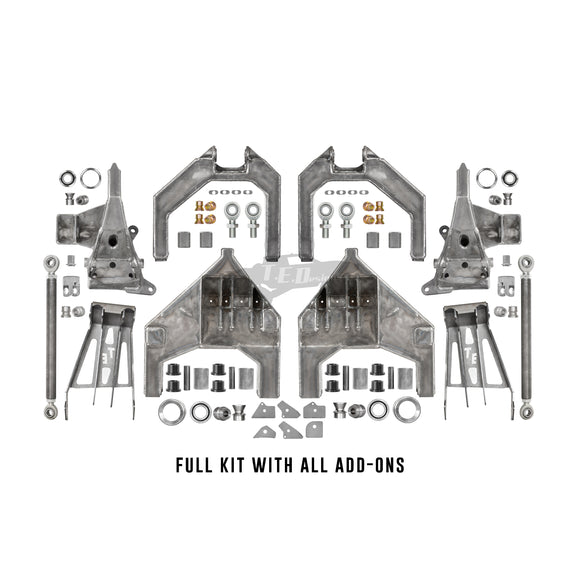

'99-'06 Chevy/GMC 2wd weld it yourself long travel kit. (Automatic discount applied at checkout if you select all add-on options.)
Kit Includes:
- 3/16" mild steel upper arms
- 3/16" mild steel lower arms
- 3/16" mild steel spindles
- Factory upper control arm mount adjustment eliminators
-
DOM tube for upper arm, lower arm, and spindle
-
Machined mild steel snout block
-
Control arm gusset kit
Specs:
- Limited at 17" travel (King Performance Series 2.5 x 10" will get you just over 18")
- Moves tires 1" forward from stock
- 2.5" x 10" coilover recommended
-
2.5"-3.5" x 10" bypass recommended
- Factory upper and lower control arm mounts
- Track width: +5" per side
Add-On Information - Please note, the below items are not included in the cost of a basic kit
Upper Control Arm Hardware Kit Includes:
- 3/4" RH FK Rod End heim joints/jam nuts (JMX Series) x4
- 3/4"-1/2" high misalignment spacers x4 (pairs)
- 3/4" Square bung/insert x4
Lower Control Arm/Spindle Hardware Kit Includes:
- 1" FK Rod Ends uniball and cup x 2ea
- 1"-5/8" high misalignment spacers x 2 (pairs)
- 1-1/2" FK Rod End uniball x2
- 1-1/2" uniball cup x2
-
1-1/2"-3/4" high misalignment spacers x2 (pairs)
Steering Kit Includes:
- 1-1/4" solid mild steel tie rods x2
- 7/8" FK Rod End heim joints/jam nuts x 2ea
- 7/8"-1/2" high misalignment spacers x 2 (pairs)
- 3/4" x 5/8" FK Rod Ends high misalignment heims/jam nuts x 2ea
- Stainless steering clevis and bolt (M18 x 1.5") x2
Lower Control Arm Bushing Kit Includes:
- Delrin bushings x8
- DOM outer sleeves x4
- DOM inner sleeves x4
Front Shock Tower Kit Includes:
- All plates necessary for WIY shock towers
Please note, photos of welded products are for demonstration only, you will not receive welded parts.
