- CNC cut and bent
- All DOM .120" wall tubing
- 2” Main tubes, 1.75" tie ins, 1.5” gussets
- Full 360 degree weld able
- Stock dash and door panels can stay intact (with modifications)
- Factory heat and AC ducts can be modified to retrofit back in stock location
- Heater core stays in factory location
- Retain factory headliner with modifications
- Each tube is labeled and marked for adjacent tube placement
- Horizontal cross over seat bar tubes included
- Set up to retain factory rear seat
- Easily modified for your own touches and needs
- Race legal (you are responsible for reading rules and following them and adjust as needed)
- PDF of tube layout and rough instructions provided

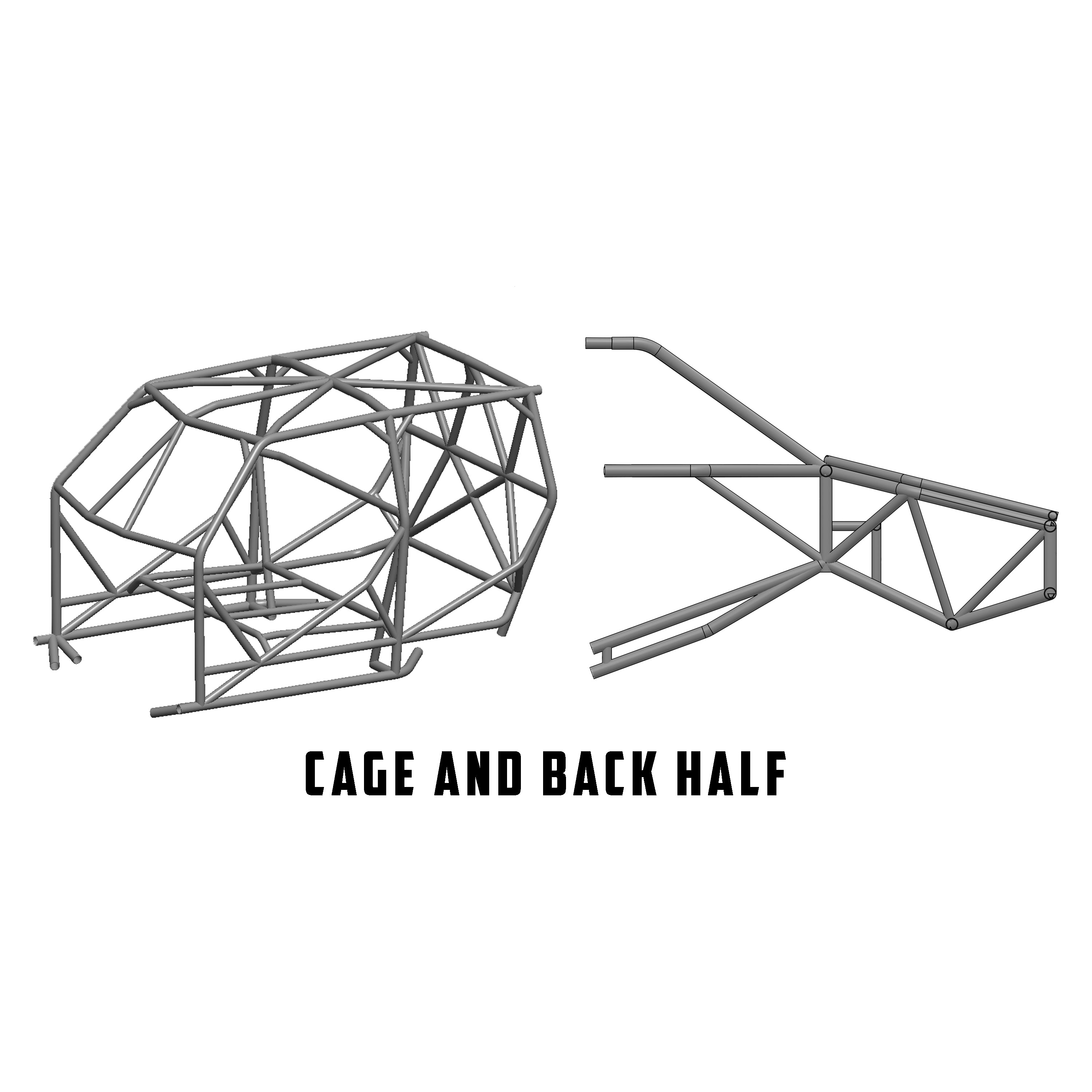

- Works with our back half and 55" links
- Front and rear body mounts will need to be replaced
- THIS SHOULD BE COMPLETED BY A COMPETENT FABRICATOR. IF YOU ARE NOT CONFIDENT IN YOUR FAB SKILLS, CONTACT A LOCAL FABRICATION SHOP FOR INSTALL
Disclaimer: T.E.Designs makes no warranties expressed or implied with regard to any product and/or installation including but not limited to the warranties of merchantability and fitness for a particular purpose. TEDesigns products and/or installations are for off-road use only. These products and/or installations therefore do not match with the vehicle manufacturer’s parts or specifications. The purchaser acknowledges that the purchase of these parts and/or installation may cause the vehicle to be unlawful to operate on public highways. The purchaser further acknowledges that no representations have been made to them with regard to the performance, safety or quality of these parts and/or their installation in the purchaser’s vehicle, and that the parts and/or installation may void the vehicle manufacturer’s warranty. TE Designs retains no liability for any damage, injuries, and/or death caused directly or by association with TE Designs products or installation. Purchaser must check with their rule book on cage to meet specs and modify as needed. The purchaser indemnifies TE Designs company name its employees, partners, and affiliates from all liability and waives their right to legal recourse against TEg Designs and its employees, partners, and affiliates. TE Designs is not responsible for shipment damages or lost items during shipment. Customer must take their own actions against the shipping provider and or broker. By purchasing this product you are agreeing to all terms stated.
