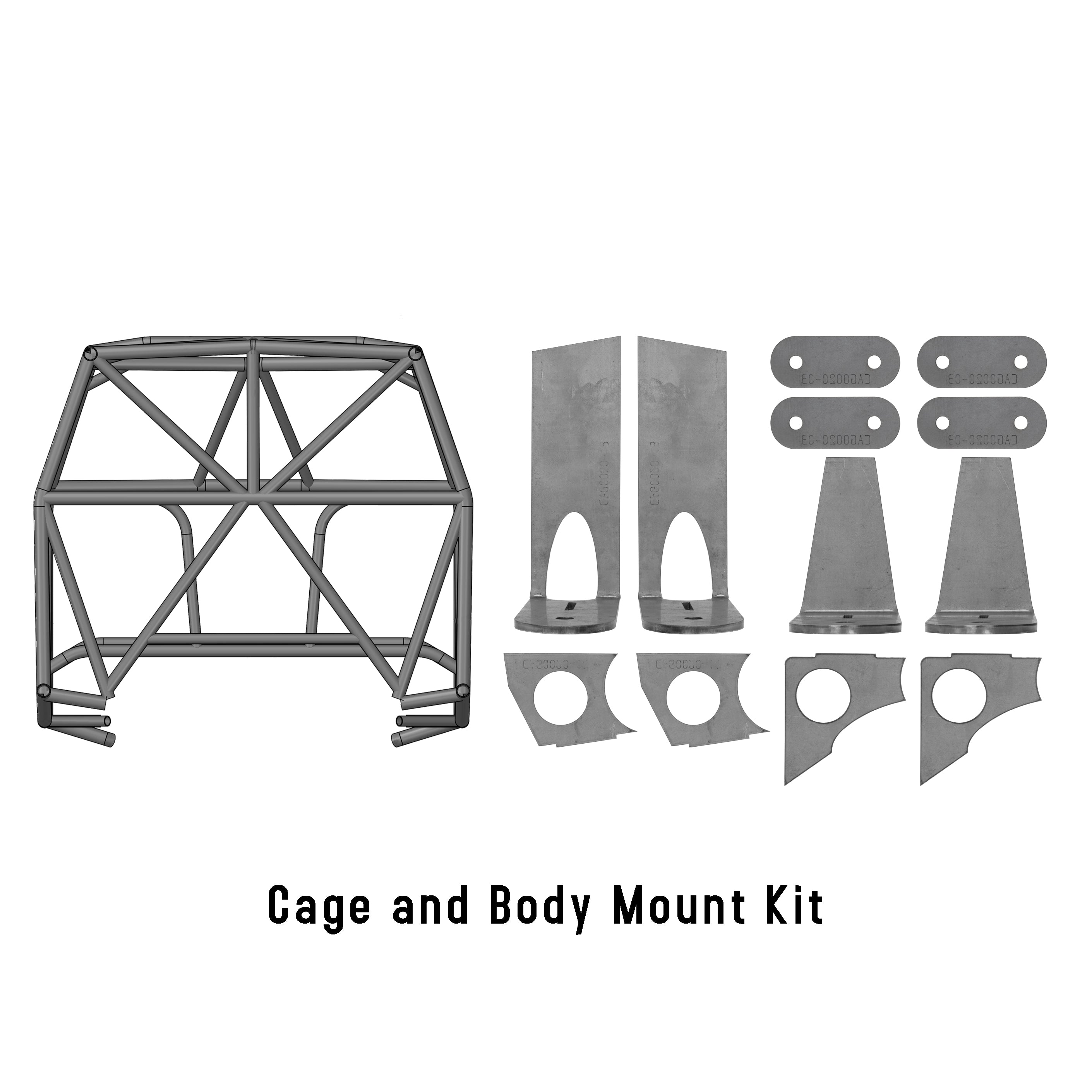

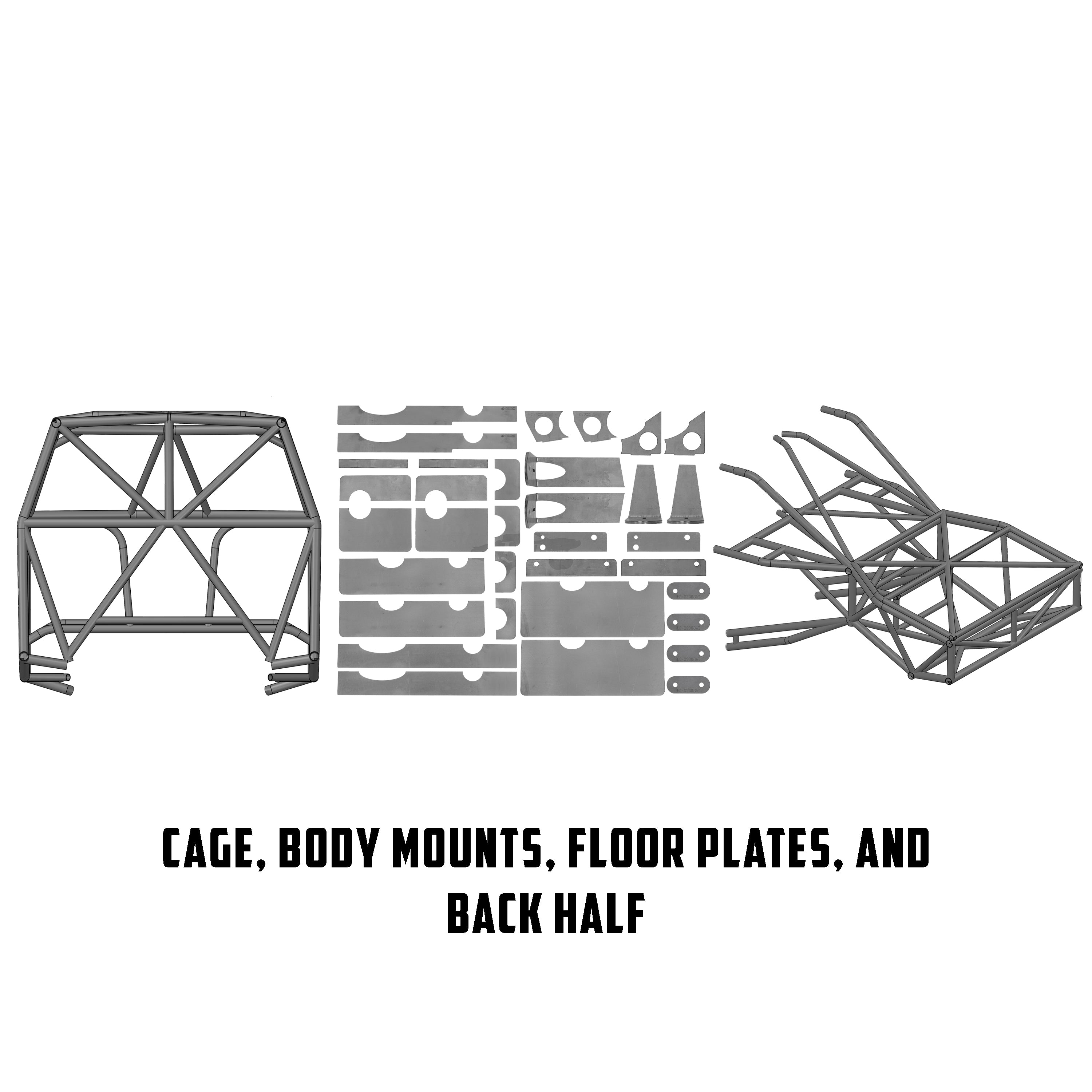

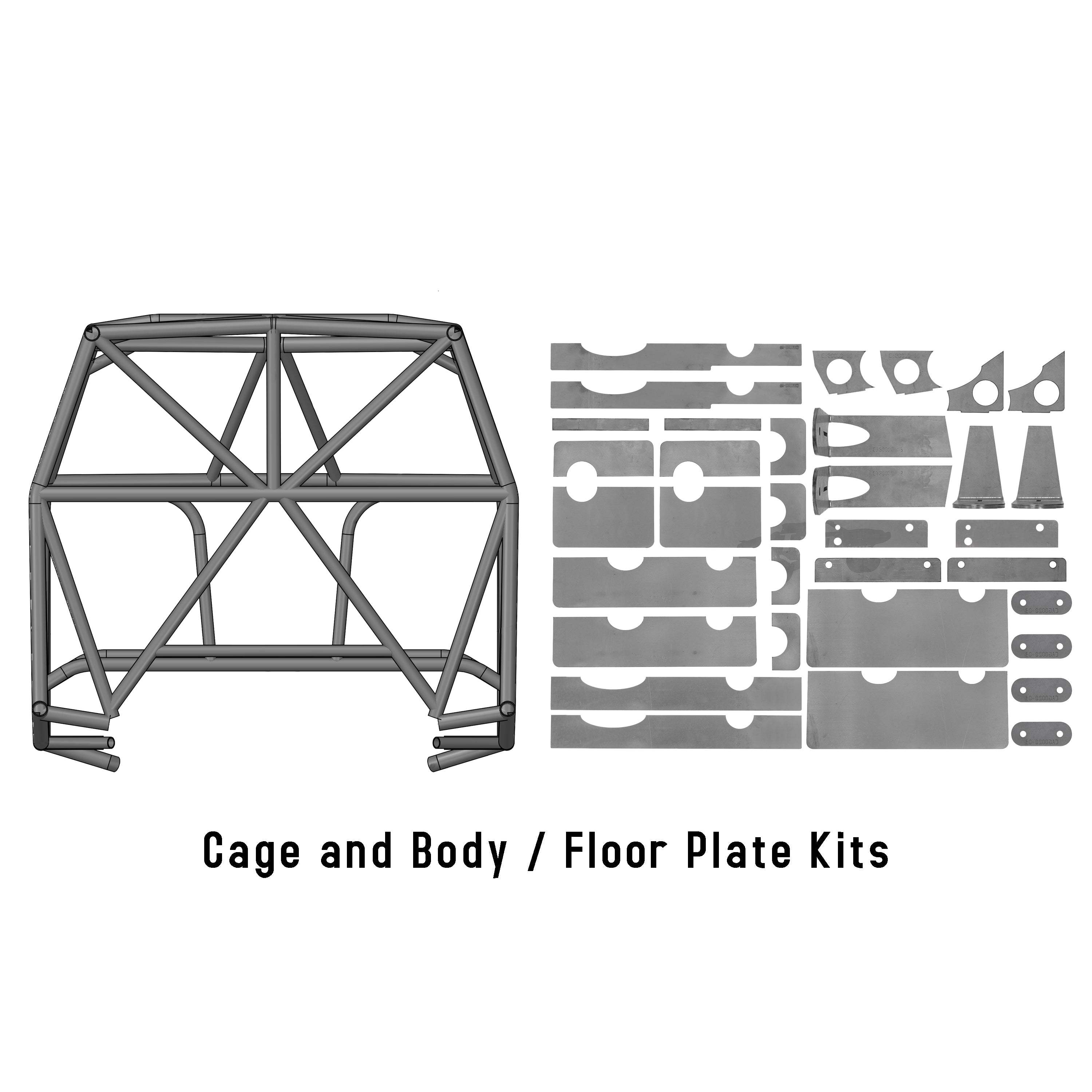

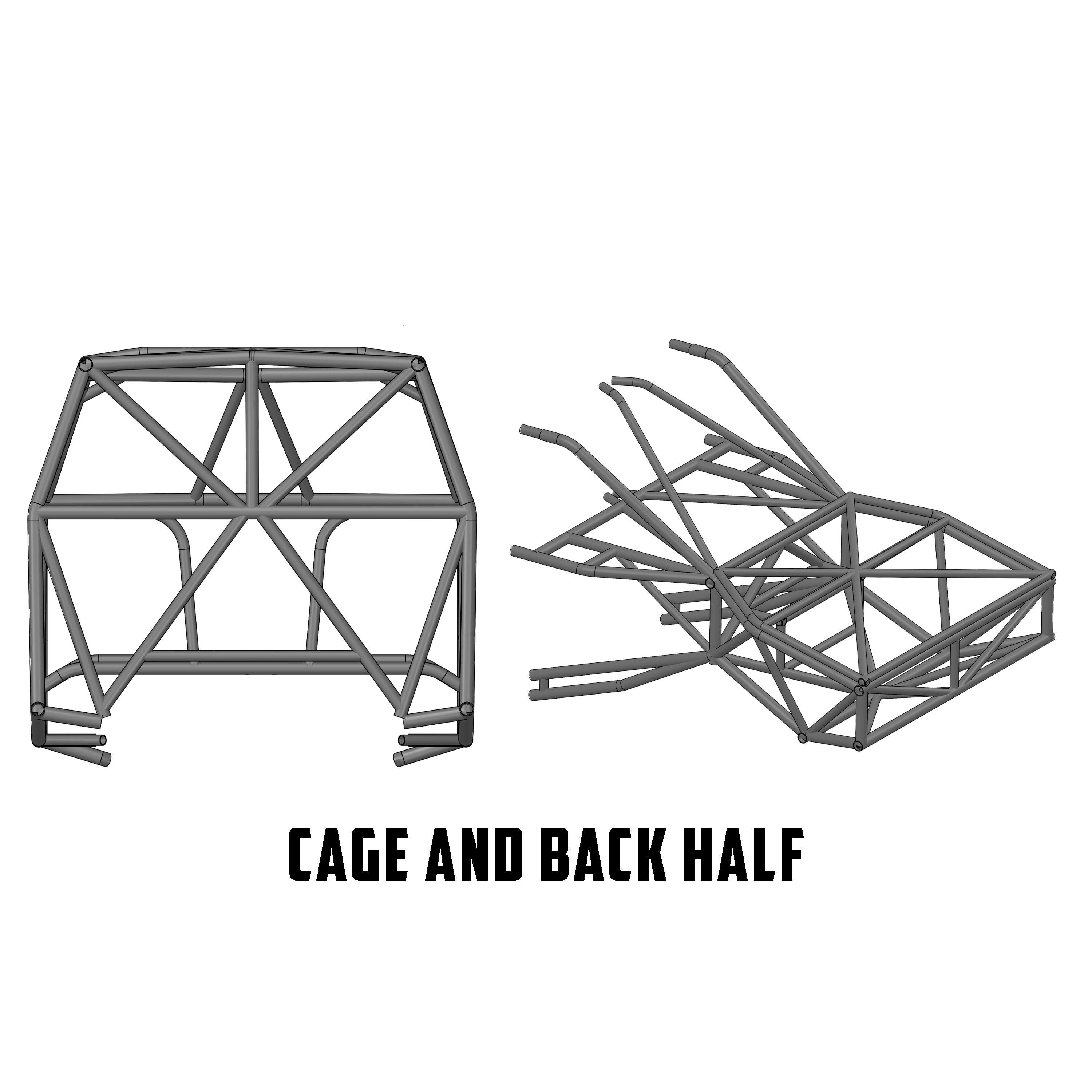

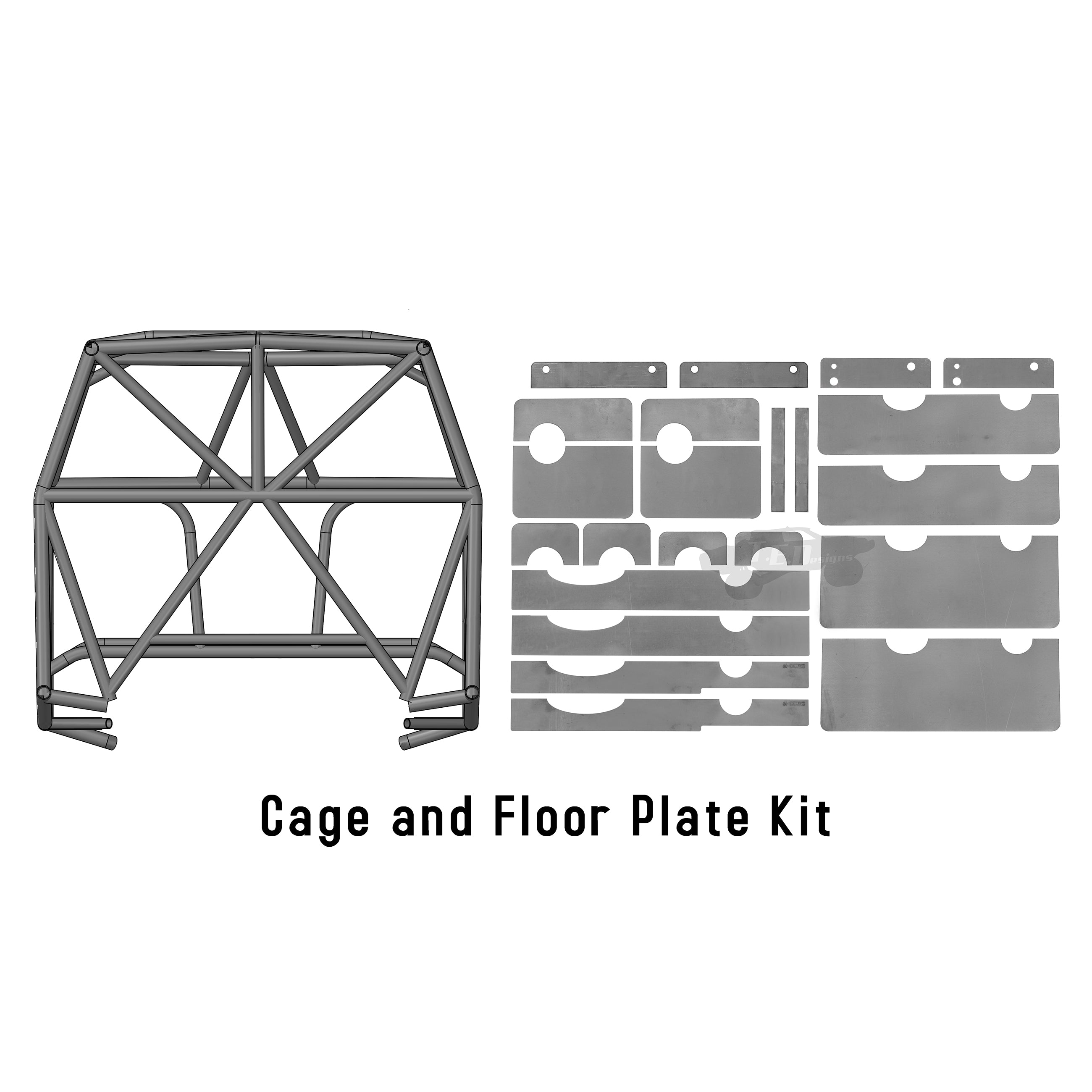

This cage is designed to fit both '99-'06 and '07-'13 Chevy 1500 ext cab trucks.
- CNC cut and bent
- All DOM .120" wall tubing
- 2” Main tubes, 1.75 tie ins, 1.5” gussets
- Full 360 degree weld able
- Stock dash and Door panels can stay intact (with modifications)
- Factory Heat and AC ducts can be modified to retrofit back in stock location
- Heater core stays in factory location
- Roof sheet metal is removed to allow more head room and a tighter fit
- 14 total frame tie ins
- Each tube is labeled and marked for adjacent tube placement
- Easily modified for your own touches and needs.
- Race legal (you are responsible for reading rules and following them and adjust as needed)
- PDF of tube layout provided
- Modification to cage necessary to retain stock gas tank

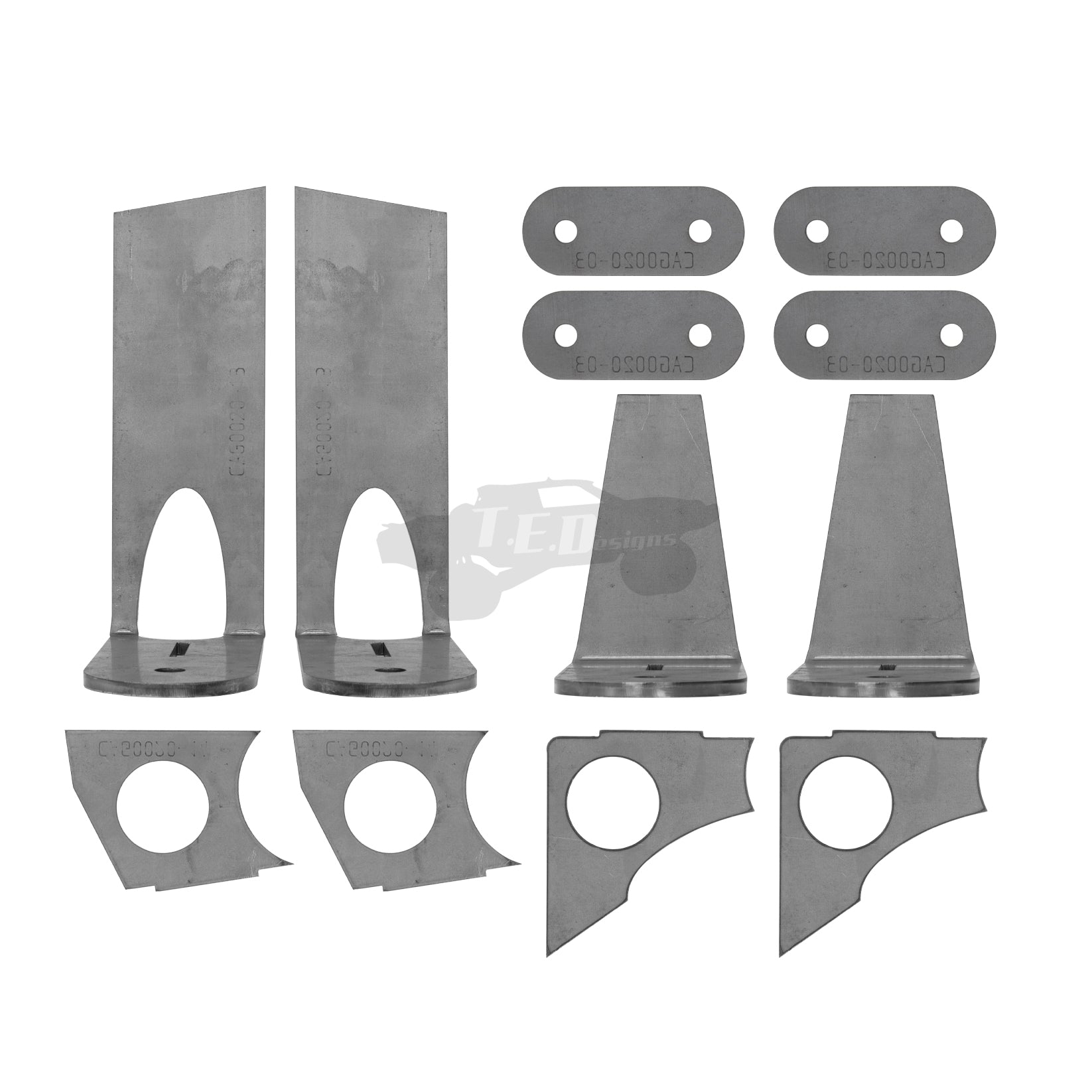

- Front and rear body mounts will need to be removed (must make your own)
- Seat tubes are not included
- This should be installed by a competent fabricator. If you are not confident in this process, please reach out to your local fab shop
